Adjustable Chamfer Cutter Head with Gear Box 694.017.30
Adjustable Chamfer Cutter Head with Gear Box 694.017.30
Adjustable Chamfer Cutter Head with Gear Box 694.017.30
Adjustable Chamfer Cutter Head with Gear Box 694.017.30

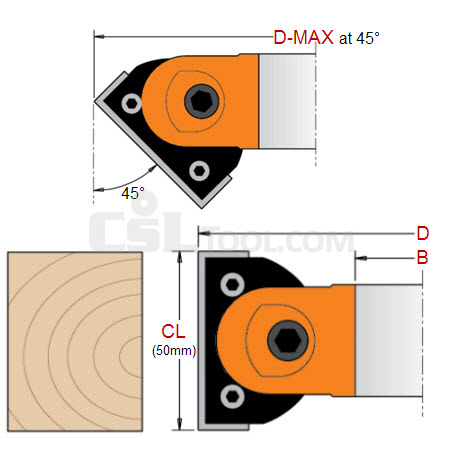

Specification

D (mm) 160
CL (mm) 50
B (mm) 30
Z 2
D_Max 45 183
RPM 4800-6000
BrandCMT
Weight2.82 kg
Top Seller

Adjustable Chamfer Cutter Head with Gear Box 694.017.30

SKU: 694.017.30
€477.76 €868.66 Save 45%

per unit · buying 1

Not in Stock Available to Order
  • Price match guarantee
  • 22 in stock
  • Talk to a specialist — +353 028 27666

Product information

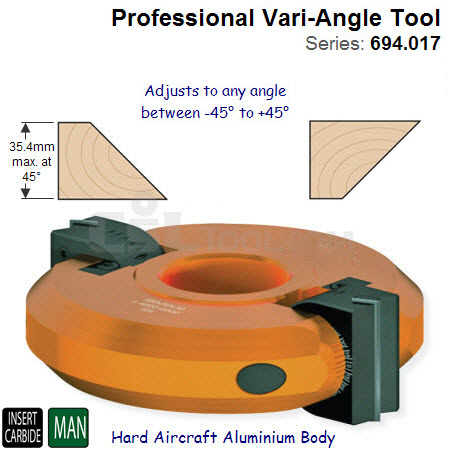

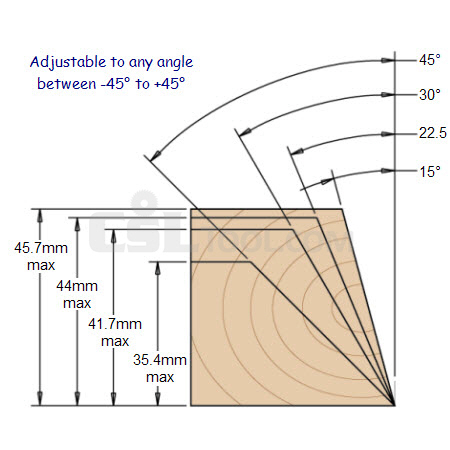

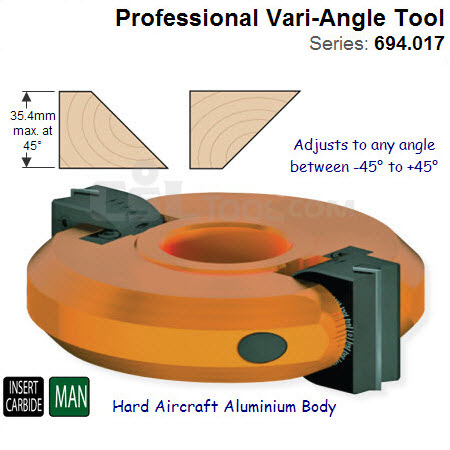

Application: Variable Angle tool for chamfering at an angle between +45 and -45 degrees.
Machines: For use on spindle moulders and other moulding machines.
Materials: Hardwoods, softwoods, plywood, mdf, chipboard and other wood composites.
See listing below for all vari-angle tools available in this group.
For Spare Parts select product from list and Click spare parts tab.
image represents product group.

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Code Specifications Pricing Buy
Product Code D (mm) CL (mm) B (mm) Z D_Max 45 RPM Market Price Our Price 2 - 5 5+ Add to Cart
694.017.30 160 50 30 2 183 4800-6000 €868.66 €477.76 €453.87 €429.99
694.017.35 160 50 35 2 183 4800-6000 €868.66 €564.63 €536.40 €508.17
694.017.50 160 50 50 2 183 4800-6000 €868.66 €564.63 €536.40 €508.17

Additional information

Weight 2.82 kg
D (mm)

CL (mm)

B (mm)

Z

D_Max 45

183
RPM
