Specification
D (mm)
100mm
B (mm)
35mm
Body Type
Aluminium
RPM
5500-8400
CL (mm)
40 & 50mm
Feed
MAN
BrandCMT
Weight1.45 kg

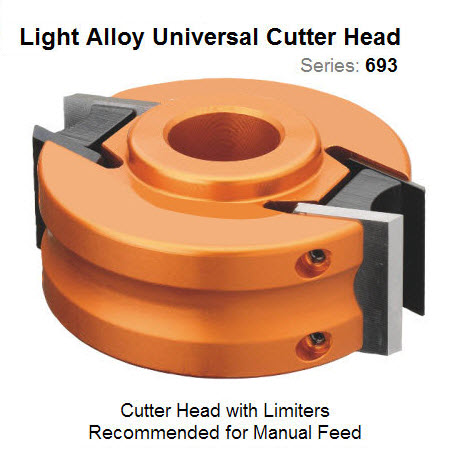

Light Alloy 100mm Dia. 35mm Bore Universal Head with Limiters 693.100.35
€180.18
€277.20
Save 35%
per unit · buying 1
In Stock
Available to Order
- Price match guarantee
- 20 in stock
- Talk to a specialist — +353 028 27666
Product information
Application: For machining a wide range of profiles on solid wood when used with any of our large selection of universal knives.
Machines: For use primarily on spindle moulders but can also be used on cnc routers when used with the appropriate arbor.
Materials: Use on hardwoods, softwoods and plywood.
See listing below for all sizes available for this cutter head type.
40mm and 50mm Universal Pofile Knives can be puchased in the Universal Knives and Limiters Section.
For Spare Parts select product from list and Click spare parts tab.
image represents product group.

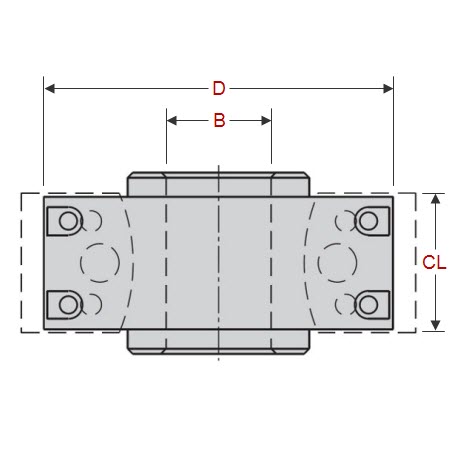

| Code | Specifications | Pricing | Buy | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | D (mm) | B (mm) | Body Type | RPM | CL (mm) | Feed | Market Price | Our Price | 2 - 5 | 5+ | Add to Cart |
| 693.100.30 | 100mm | 30mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €277.20 | €166.32 | €158.00 | €149.69 | |
| 693.100.31 | 100mm | 31.75mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €277.20 | €166.32 | €158.00 | €149.69 | |
| 693.100.35 | 100mm | 35mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €277.20 | €180.18 | €171.17 | €162.16 | |
| 693.120.50 | 120mm | 50mm | Aluminium | 4800-7400 | 40 & 50mm | MAN | €277.20 | €180.18 | €171.17 | €162.16 | |
| 693.101.30 | 100mm | 30mm | Steel | 5500-8400 | 40 & 50mm | MAN | €213.41 | €128.05 | €121.65 | €115.24 | |
| 693.101.35 | 100mm | 35mm | Steel | 5500-8400 | 40 & 50mm | MAN | €213.41 | €128.05 | €121.65 | €115.24 | |
| 693.121.50 | 120mm | 50mm | Steel | 4800-7400 | 40 & 50mm | MAN | €243.17 | €158.06 | €150.16 | €142.25 | |
| 693.078.30 | 78mm | 30mm | Steel | 7000-9000 | 40mm | MAN | €220.98 | €143.63 | €136.45 | €129.27 | |
Additional information
| Weight | 1.45 kg |
|---|---|
| D (mm) | |
| B (mm) | |
| Body Type | |
| RPM | |
| CL (mm) | |
| Feed |
