Specification
Set Type
7pcs. Set D
D (mm)
120mm
B (mm)
50mm
Body Type
Aluminium
RPM
4800-7400
CL (mm)
40 & 50mm
Feed
MAN
BrandCMT
Weight2.52 kg
7 pcs. Multiprofile Set D with 120mm Dia. 50mm Bore Head with Limiters 693.013.06
€335.23
€515.73
Save 35%
per unit · buying 1
In Stock
Available to Order
- Price match guarantee
- 20 in stock
- Talk to a specialist — +353 028 27666
Product information

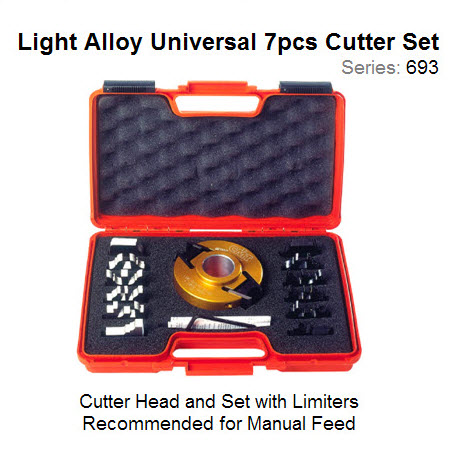

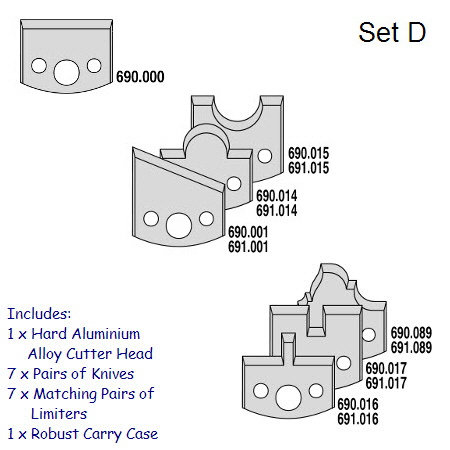

Application: 7pcs. Set D with limiters, contains a tongue and groove set, a bullnose set with counter profile and a splayed set.
Machines: For use primarily on spindle moulders but can also be used on cnc routers with the appropriate arbor.
Materials: Use on hardwoods, softwoods and plywood.
See listing below for all sizes available for this cutter head type.
Additional 40mm and 50mm Knives and Limiters can be puchased in the Universal Knives and Limiters Section.
For Spare Parts select product from list and Click spare parts tab.
image represents product group.

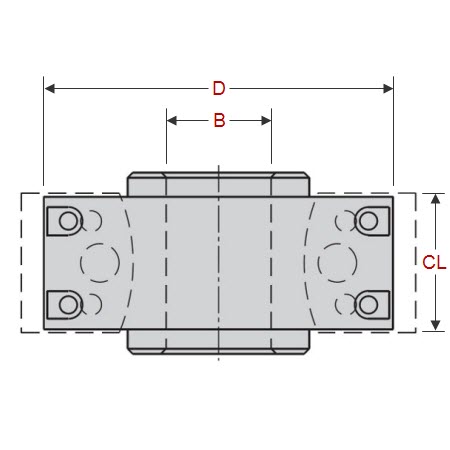

| Code | Specifications | Pricing | Buy | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Set Type | D (mm) | B (mm) | Body Type | RPM | CL (mm) | Feed | Market Price | Our Price | 2 - 5 | 5+ | Add to Cart |
| 693.013.01 | 7pcs. Set C | 100mm | 30mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €515.73 | €309.44 | €293.97 | €278.50 | |
| 693.013.02 | 7pcs. Set C | 100mm | 35mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €515.73 | €335.23 | €318.46 | €301.70 | |
| 693.013.03 | 7pcs. Set C | 120mm | 50mm | Aluminium | 4800-7400 | 40 & 50mm | MAN | €515.73 | €335.23 | €318.46 | €301.70 | |
| 693.013.04 | 7pcs. Set D | 100mm | 30mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €515.73 | €309.44 | €293.97 | €278.50 | |
| 693.013.05 | 7pcs. Set D | 100mm | 35mm | Aluminium | 5500-8400 | 40 & 50mm | MAN | €515.73 | €335.23 | €318.46 | €301.70 | |
| 693.013.06 | 7pcs. Set D | 120mm | 50mm | Aluminium | 4800-7400 | 40 & 50mm | MAN | €515.73 | €335.23 | €318.46 | €301.70 | |
Additional information
| Weight | 2.52 kg |
|---|---|
| Set Type | |
| D (mm) | |
| B (mm) | |
| Body Type | |
| RPM | |
| CL (mm) | |
| Feed |
